과학 연산, 데이터 분석, 머신러닝 추론, 비디오 트크랜스코딩과 같은 난이도 높은 연산 처리가 부각되면서 데이터를 신속/정확하게 산출하여 다변화된 비즈니스 환경에 대응이 가능한 컴퓨팅 자원으로 2개의 GPU부터 10개 GPU까지 병렬 서버로 연결하는 최고의 자원을 선택할 수 있습니다.


HGX-ADG4U A100 80GB4


| HPC Server

| 2U DP SXM4 A100 4 GPU Server

| Application : AI , AI Training , AI Inference & HPC


  • ● Supports NVIDIA HGX™ A100 with 4 x SXM4 GPU
  • ● Supports NVIDIA® NVLink® technology
  • ● Up to 600GB/s GPU to GPU interconnection
  • ● Dual AMD EPYC™ 7002 series processor family
  • ● 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
  • ● 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • ● 1 x dedicated management port
  • ● 4 x 2.5" Gen4 U.2 NVMe/SATA/SAS hot-swappable HDD/SSD bays
  • ● Ultra-Fast M.2 with PCIe Gen4 x4 interface
  • ● 6 x Low profile Gen4 x16 expansion slots
  • ● 1 x OCP 3.0 Gen4 x16 mezzanine slot
  • ● 3000W 80 PLUS Platinum redundant power supply

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.


● Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption

● Up to 64 core per CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture

● Supporting PCIe® 4.0 with a bandwidth of up to 64GB/s, twice of PCIe 3.0

● Embedded security protection to help defend your CPU, applications, and data

up to
2X Performance
Per Socket & IO Bandwidth
up to
4X Floating Point
Per Socket
vs AMD EPYC Naples
vs AMD EPYC Naples

Product Overview

System Block Diagram

High Density HPC


Supports NVIDIA HGX™ A100 4-GPU

Massive datasets, exploding model sizes, and complex simulations require multiple GPUs with extremely fast interconnections. NVIDIA HGX A100 combines NVIDIA A100 Tensor Core GPUs with high-speed interconnects to form the world’s most powerful servers. With A100 80GB GPUs, a single HGX A100 has up to 1.3 terabytes (TB) of GPU memory and over 2 terabytes per second (TB/s) of memory bandwidth, delivering unprecedented acceleration.

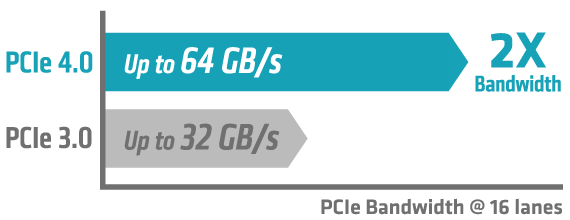

PCIe® 4.0 Ready


AMD EPYC Rome is ready to support PCIe® 4.0 with a bandwidth of 64GB/s, twice that of PCIe 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe 4.0 devices such as AMD’s Radeon MI50 GPGPU.

* The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).

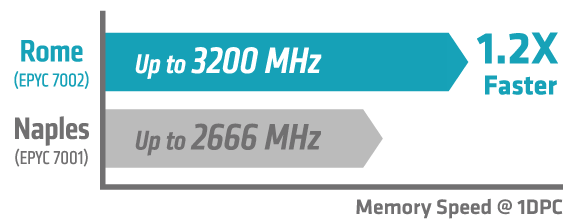

Higher Memory Speed


AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

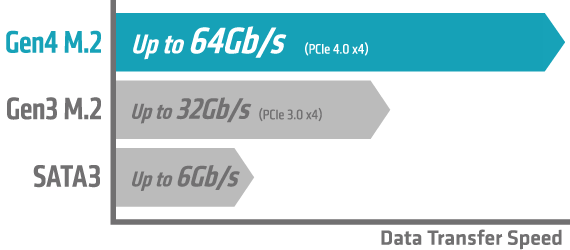

More M.2 Storage


GIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.


OCP 3.0 Add-On Card Ready


GIGABYTE’s AMD EPYC Rome Server Platforms feature an onboard OCP 3.0 mezzanine slot for the next generation of PCI Gen 4.0 add on cards.

Compared to previous OCP 2.0 type cards, advantages of this new type include:

 Easier Serviceability : simply slot in / pull out the card without needing to open the server chassis; tool less design

Larger Thermal Envelope : more space for heat sink provides an increased power budget for new & emerging capabilities


Data Security


TPM 2.0 Module

GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).


Carefully Selected Components


GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.


Design Features for Easy Maintenance

GIGABYTE’s AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again!


Tool-less Rail Kits

Rail kits attach to the side of the server chassis via clipping mechanism.


Tool-less 2.5” & 3.5” Drive Bays

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.



Efficient,
Reliable Power Supply


GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.


Intelligent Power Management Features


SCMP (Smart Crises Management / Protection)

SCMP is a GIGABYTE patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.

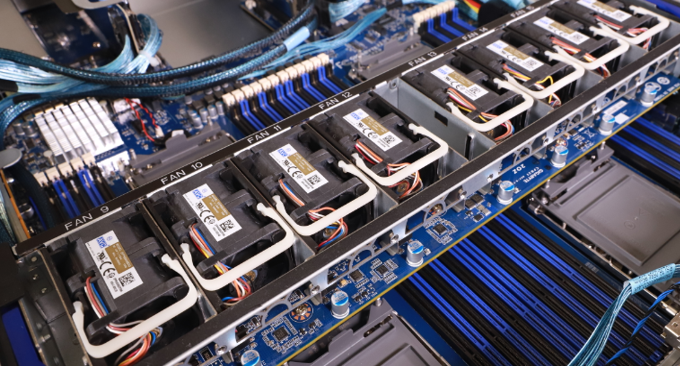

Automatic Fan Speed Control


To achieve the best cooling and power efficiency, GIGABYTE servers are enabled with automatic fan speed control. Individual fan speed will be automatically adjusted according to CPU, DIMM, M.2, HDD, and GPU temperature sensors. When BMC detects a temperature change at a particular location, the corresponding fan speed will be changed accordingly.

Certified Ready with Software Partners


Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.


GIGABYTE Management Console


GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.

● RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management

● Including HTML5 based iKVM remote management client, no need to purchase other additional licenses

● Detailed FRU information from SMBIOS

● 10 to 30 seconds pre-event automatic recording function

● SAS / RAID controller monitoring function

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:


● GSM Server : A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer

   or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.

● GSM CLI : A command-line interface for monitoring and managing remotely.

● GSM Agent : A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS,

   and this software integrates with GSM Server or GSM CLI.

● GSM Mobile : A mobile app for both Android and iOS that provides admins with real-time system information.

● GSM Plugin : An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
